Specifications
|
|
ELECTRONIC SPECIFICATIONS
|
|
Power Output per Channel
|
Solid State section: 600 Watts ＠ 2, 4 or 8 Ohms
Vacuum Tube section: 300 Watts ＠ 2, 4 or 8 Ohms
|
|
Number of Channels
|
1
|
|
Total Harmonic Distortion
|
Solid State section: 0.005% maximum harmonic distortion at any power level from 250 milliwatts to rated power, 20Hz to 20,000Hz
Vacuum Tube section: 0.5% maximum harmonic distortion at any power level from 250 milliwatts to rated power, 20Hz to 20,000Hz
|
|
S/N below rated output
|
Solid State section: 122dB
Vacuum Tube section: 112dB
|
|
Dynamic Headroom
|
Solid State section: 2.5dB
Vacuum Tube section: 1.2dB
|
|
Damping Factor
|
Solid State section: >40
Vacuum Tube section: >18
|
|
Rated Power Band
|
Solid State section: 20Hz to 20kHz
Vacuum Tube section: 20Hz to 20kHz
|
|
Frequency Response
|
Solid State section:
+0, -0.25dB from 20Hz to 20,000Hz
+0, -3dB from 10Hz to 100,000Hz
Vacuum Tube section:
+0, -0.5dB from 20Hz to 20,000Hz
+0, -3dB from 10Hz to 70,000Hz
|
|
CONTROL
|
|
Remote Power Control
|
Yes
|
|
Multi-Channel DB25 Cable
|
N/A
|
|
CONNECTIVITY
|
|
Speaker Binding Post Type
|
Patented Solid Cinch™ Speaker Binding Posts
|
|
GENERAL SPECIFICATIONS
|
|
Circuit Configuration
|
Solid State section: Quad Balanced
Vacuum Tube section: Unity Coupled
|
|
Circuit Design
|
Solid State and Vacuum Tube
|
|
Mono Bridge
|
No
|
|
Mono Parallel
|
No
|
|
Output Type
|
Output Type
|
|
Meters
|
DualView™ Power Output Meter
|
|
Meter Light Switch
|
Yes
|
|
Balanced Input
|
3 (1 Solid State, 1 Vacuum Tube, 1 Composite)
|
|
Front Panel
|
Glass
|
|
Illumination
|
Direct LED
|
|
Chassis Style
|
Polished stainless steel & black painted steel
|
|
WEIGHTS & DIMENSIONS
|
|
Dimensions (W x H x D)
|
17-1/2" (44.45cm) x 13-1/4" (33.7cm) (including feet) x 29-1/2" (74.9m)
|
|
Weight
|
180 lbs (81.6 kg)
|
|
Shipping Weight
|
200 lbs (90.7 kg)
|

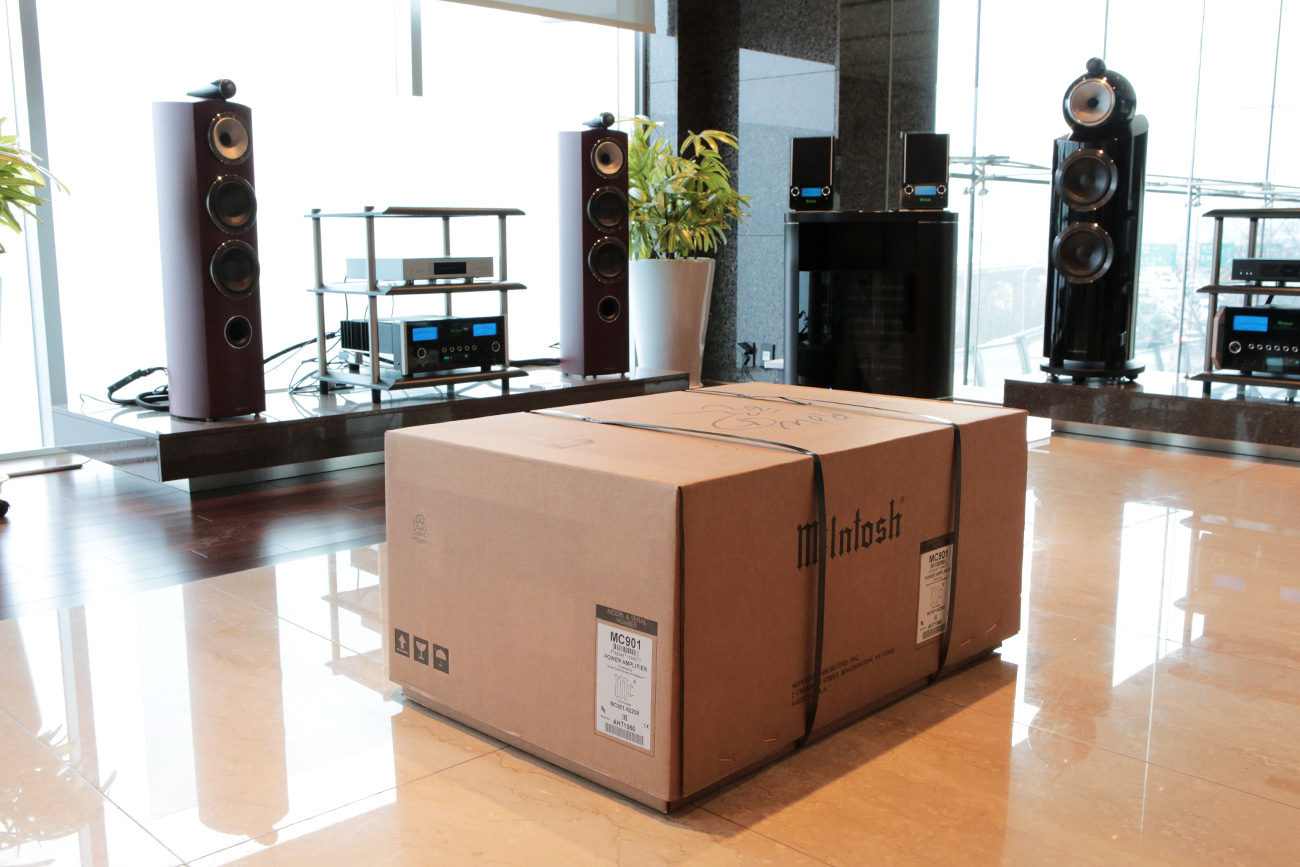

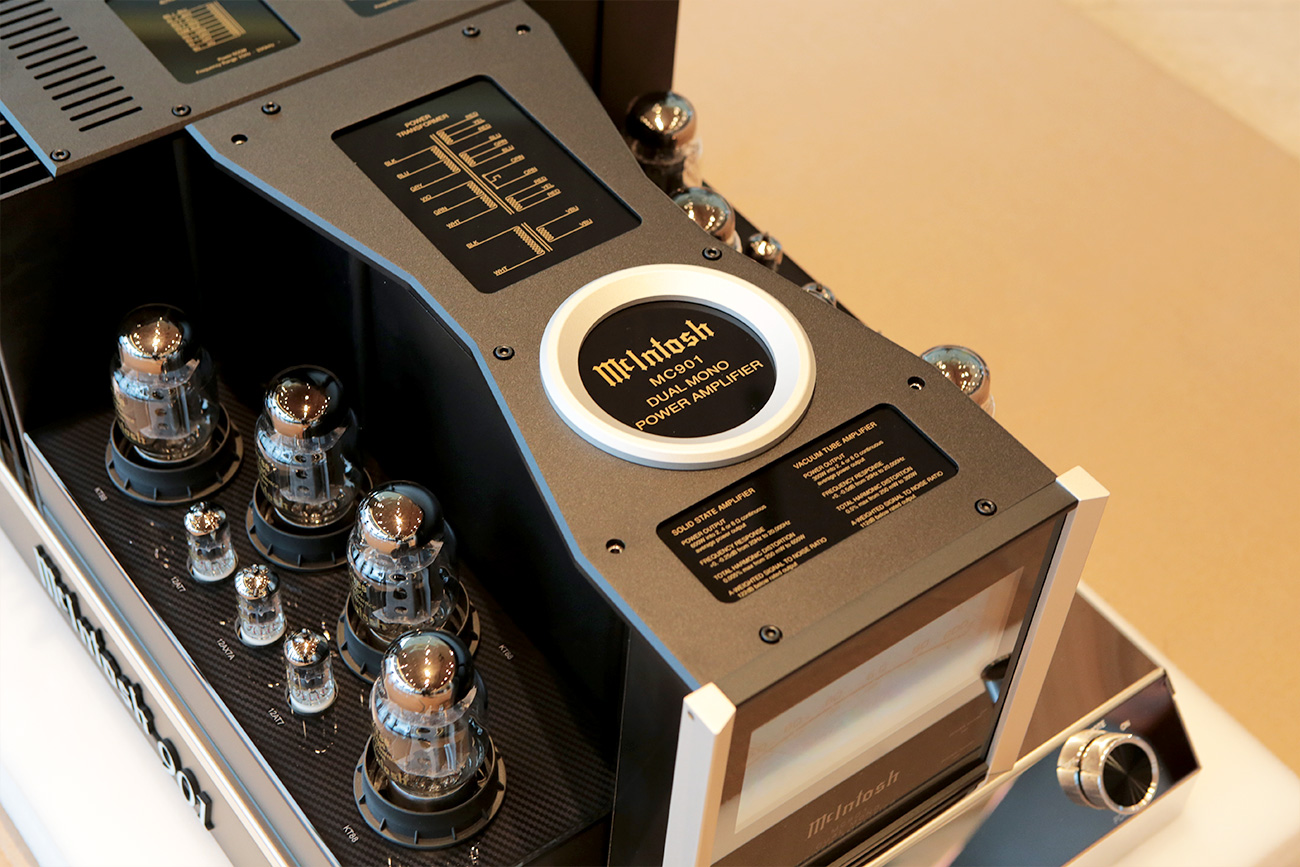

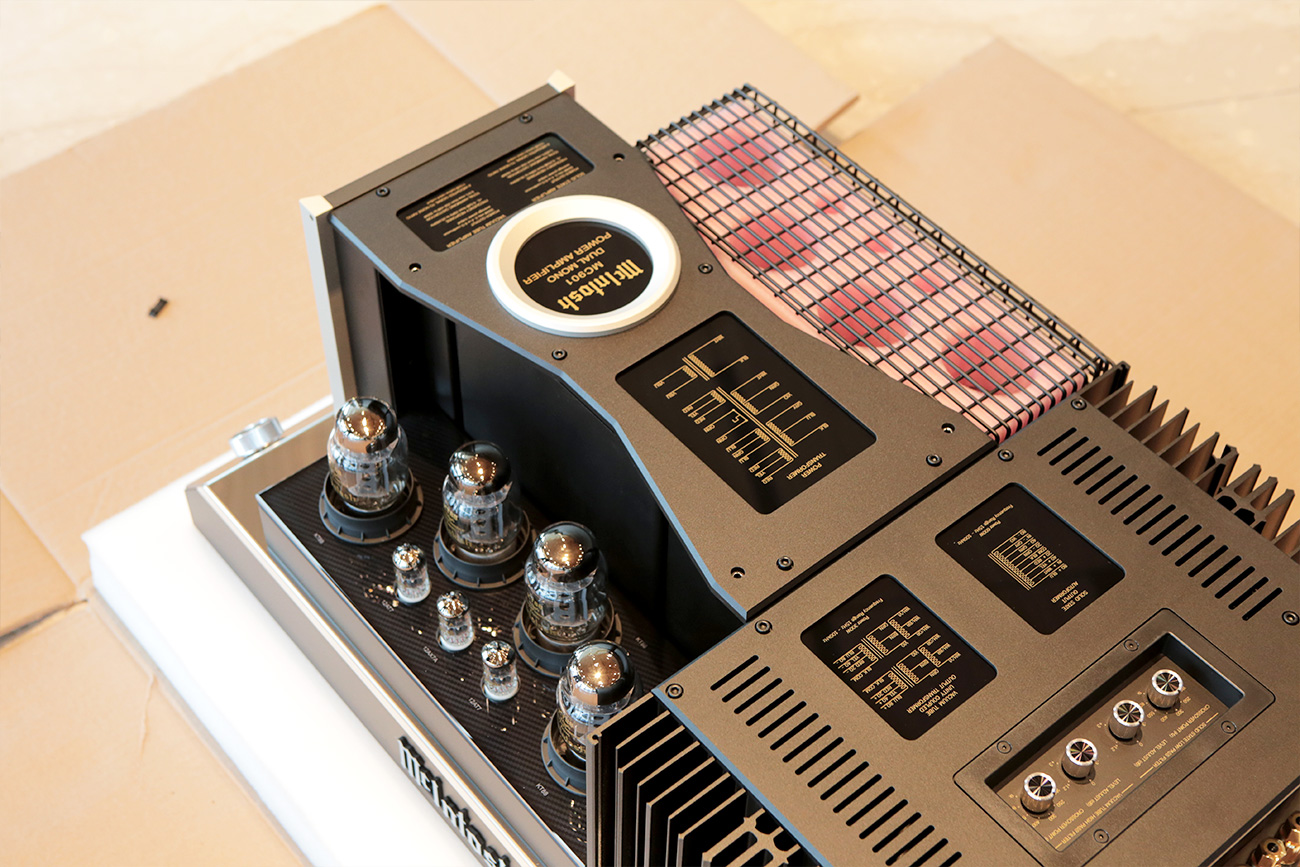

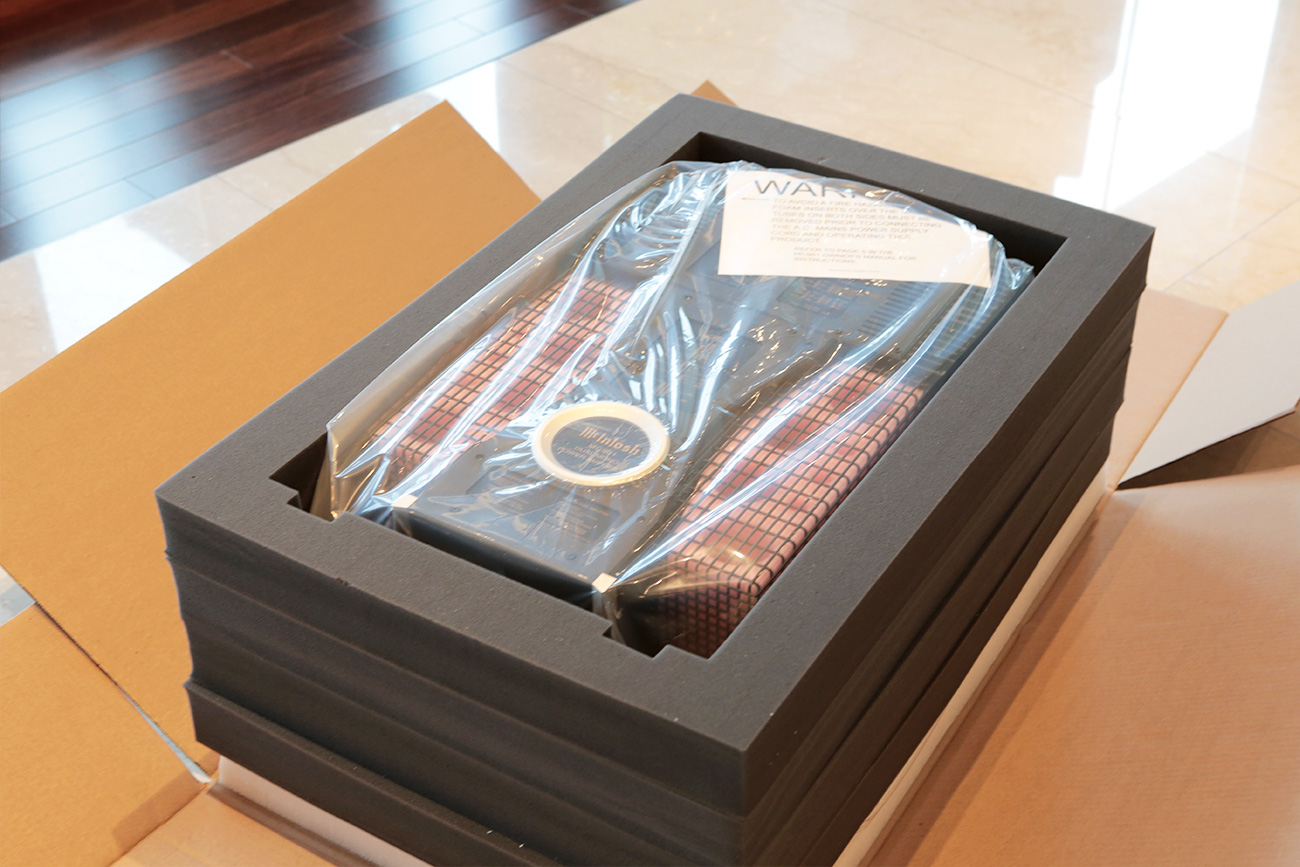

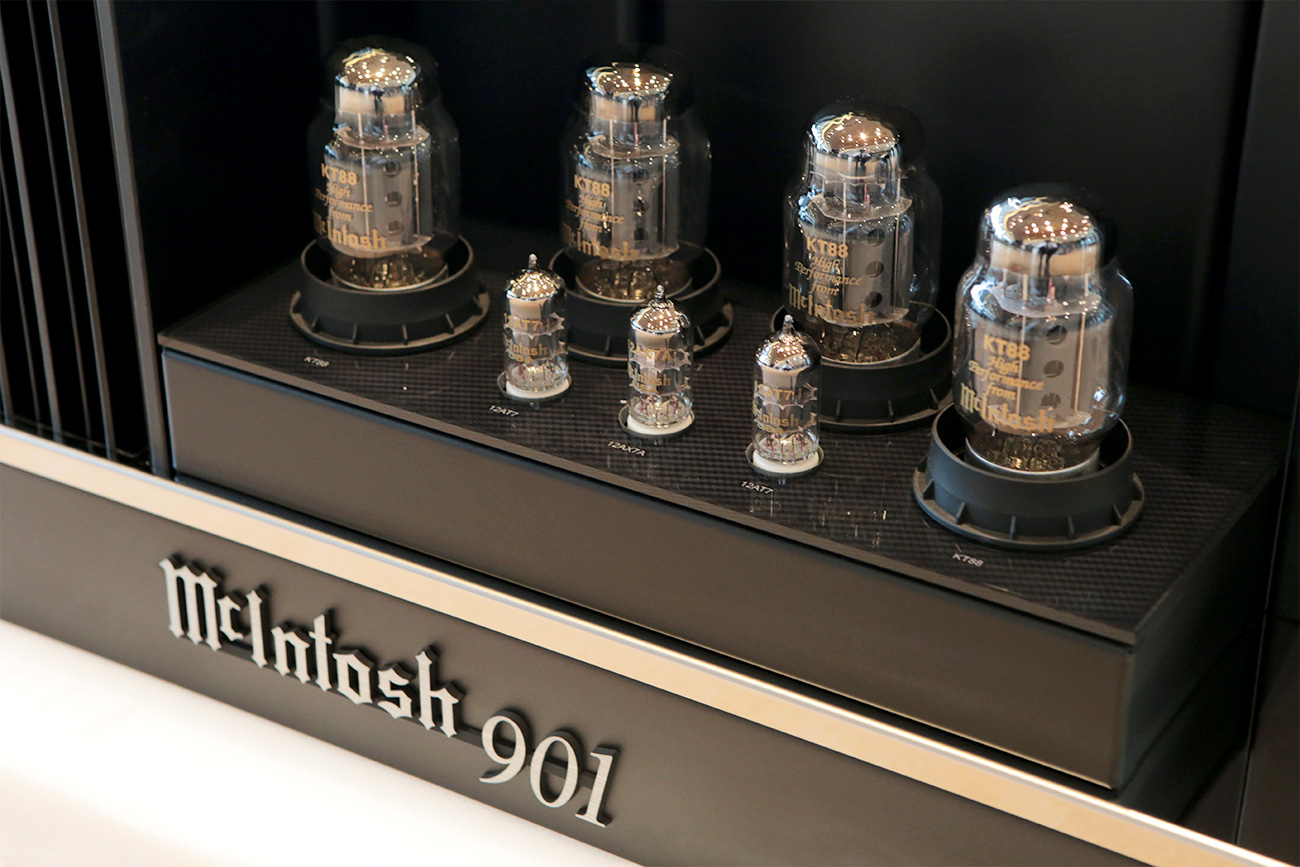

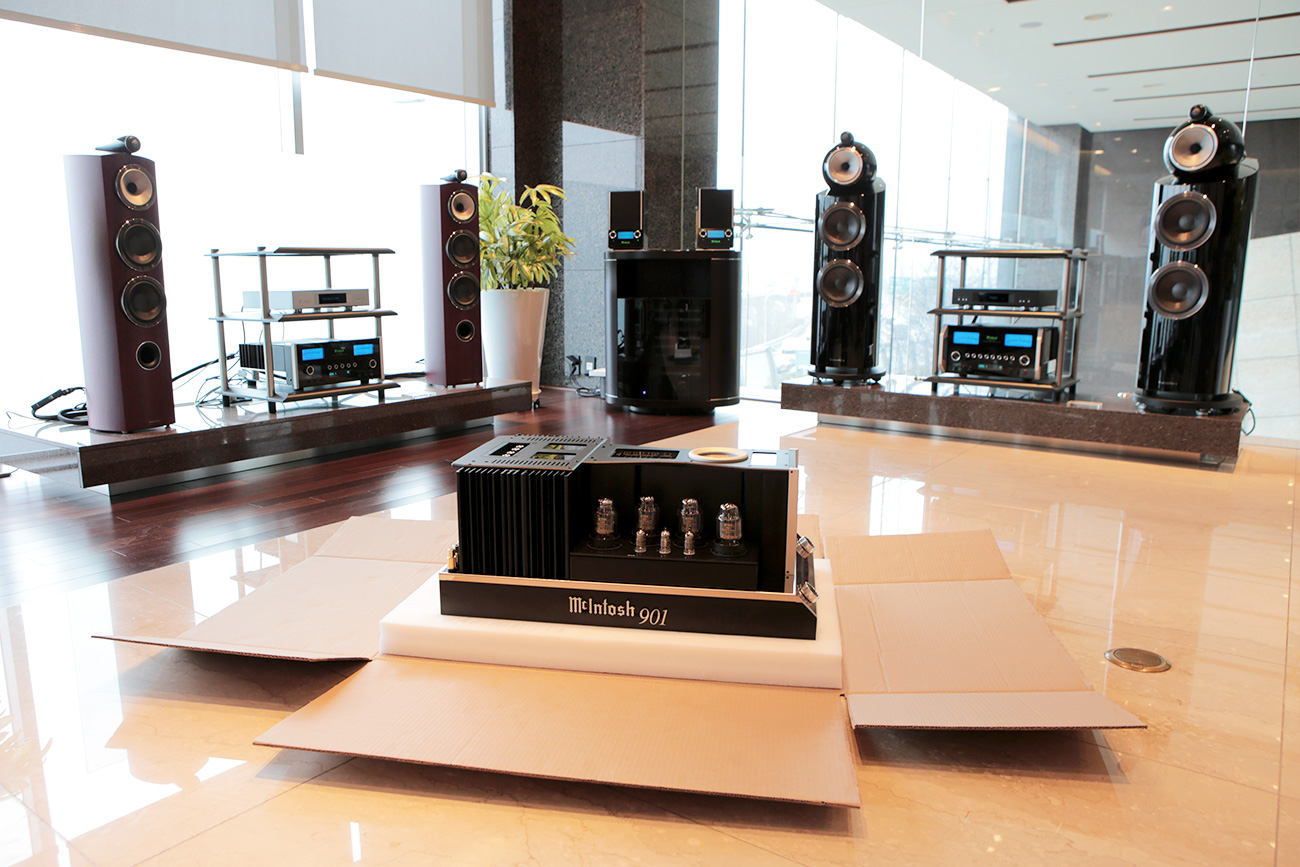

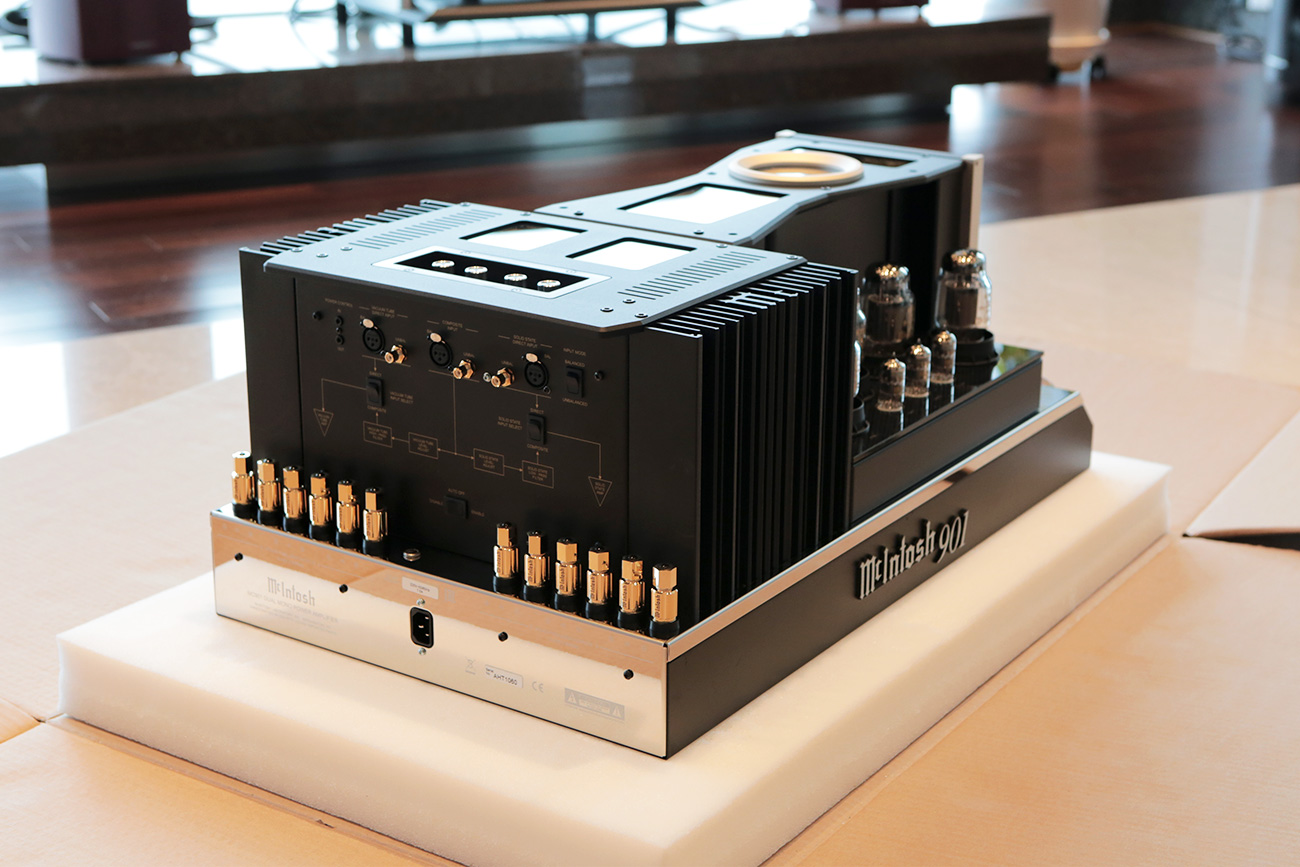

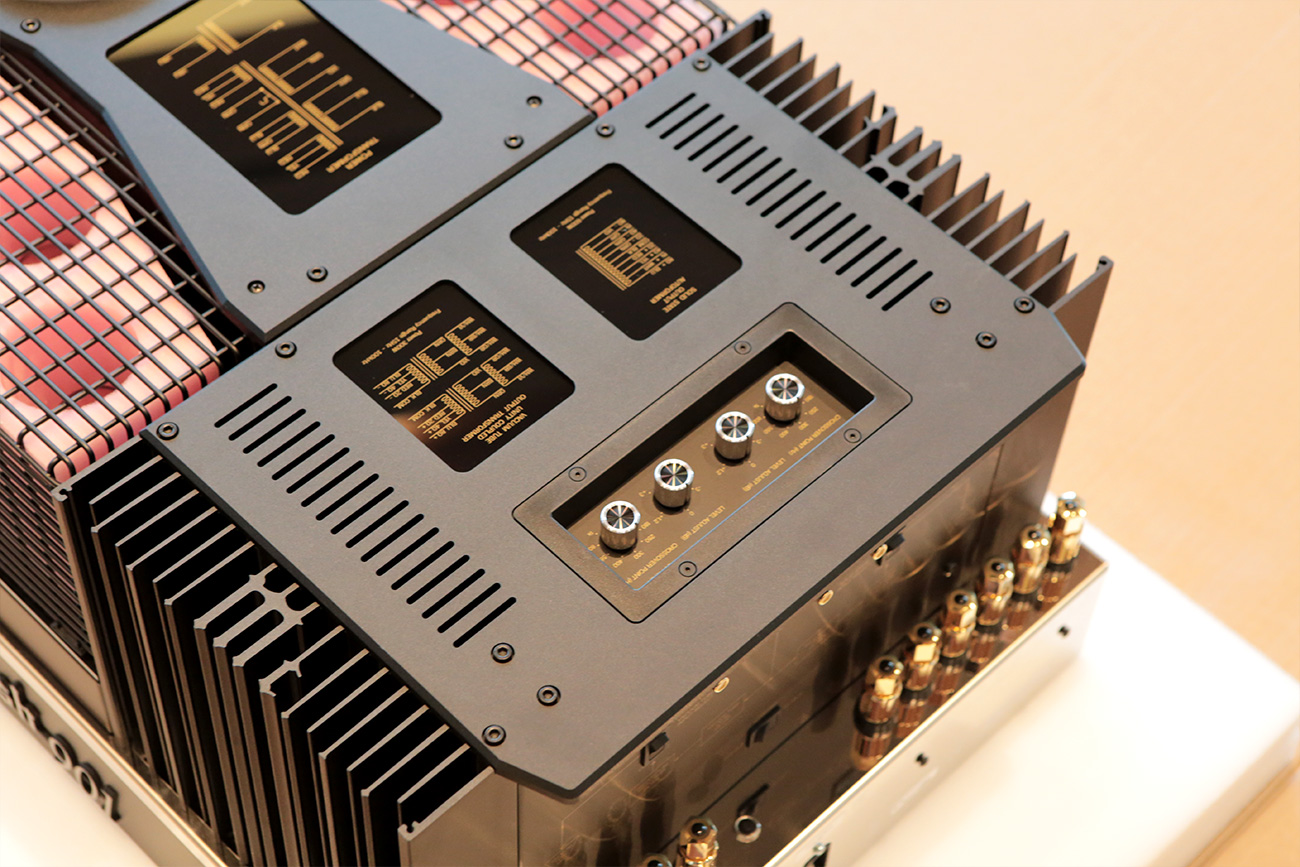

[프리뷰]거함급 파워앰프 McIntosh MC901 Dual Mono Amplifier 프리뷰. 외관 하이파이클럽.jpeg)
