2M is developed together with the Danish designer "MøllerJensen Design" from Copenhagen Denmark - the same designer who designed the award winning cartridge MC Jubilee and the Kontrapunkt series.
The inspiration for designing the 2M was related to the facets of the diamond - elegantly concentrating its contours against the grooves on the record surface.
The name 2M was selected among several ideas. We wanted a modern name which should be easy to pronounce and to remember and therefore an alpha numerical name was chosen. 2M means MM which is the abbreviation for moving magnet.
We are using the same names on our 2M series as we use at our Rondo series: Red Blue and Bronze. The 2M Black will become the flagship of 2M.
2M was the last product of our former chief engineer Per Windfield. He has worked with the 2M for the last two years.
The 2M Technology
2M are designed for precise and accurate retrieval of the information in the record groove. Our philosophy is to play the record sound as accurate as possible without coloring the sound. We have optimized the design for ease of mounting the cartridge weight and size to fit the most common turntables at the market today.

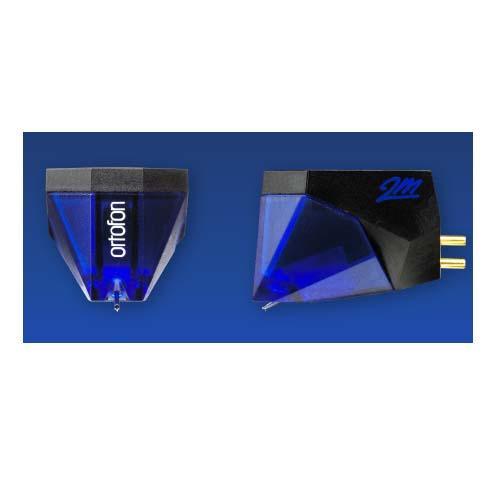

All of the 2M cartridges feature diamonds which are polished to the highest standards in the industry. The 2M Red features a tipped elliptical diamond while the 2M Blue features a nude elliptical diamond.
The 2M Bronze features a nude Fine Line diamond stylus which is particularly suited for demanding applications. The slim profile of the Fine Line stylus will track even the highest frequency information making it a must for discerning listeners. Additionally its larger footprint ensures reduced distortion and record wear.
The 2M Black is the new moving magnet flagship from Ortofon.The 2M black is graced with a Shibata diamond stylus - the same diamond as on the acclaimed MC Jubilee. Its slim highly polished profile allows an exceedingly wide contact area to the groove walls and ensures notably detailed reproduction throughout the spectrum including even the most high frequency groove information.
The 2M series has interchangeable stylus units and replacement stylus is available.
To obtain a flat frequency response as with a Moving Coil cartridge we are using the slit pole pins to reduce the eddy current. The slit pole pins is an Ortofon invention which was presented in the 500 series and the Super OM series.
The 2M Red and 2M Blue both have the same engine with slit pole pins. With this improved engine we have been able to increase to output to 5.5 mV.
The cartridge body used for the 2M Bronze and 2M Black is manufactured from a newly-developed Noryl plastic/glass combination a revolutionary material which ensures high rigidity while eliminating unwanted resonances. The 2M Bronze and 2M Black use a special upgraded engine featuring split pole pins with a silver plated copper wire.
TECHNICAL DATA
2M
Red
2M
Blue
2M
Bronze
2M
Black
Output voltage at 1000 Hz 5cm/sec.
5.5 mV
5.5 mV
5.5 mV
5.5 mV
Channel balance at 1 kHz
1.5 dB
1.5 dB
1 dB
1 dB
Channel separation at 1 kHz
22 dB
22 dB
26 dB
26 dB
Channel separation at 15 kHz
15 dB
15 dB
15 dB
15 dB
Frequency range at - 3dB
20 - 22000 Hz
20 - 25000 Hz
20 - 29000 Hz
20 - 31000 Hz
Frequency response
20 - 20000 Hz
+3/-1 dB
20 - 20000 Hz
+2/-1 dB
20 - 20000 Hz
+3/-0 dB
20 - 20000 Hz
+2/-0 dB
Tracking ability at 315Hz at
recommended tracking force
