Top loaded Integrated CD player and Transport based on the Philips CDM12 PRO II drive for the laser, servo and control functions, and a “Continious Ground” link from the disc surface to the electrical earth by using a new clamp designed by Metronome Technologie .
Proprietary modifications are made to the Philips mechanism to suit the Metronome specifications.

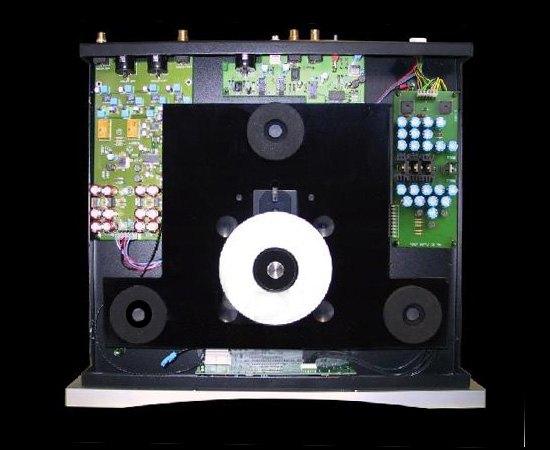

Two box design: one dedicated to the reading mechanism, control electronic, analog and digital outputs, one box contain a separate 4 transformers power supply.
This power supply configuration provide a good protection from EMI/RFI radiation from the different stages and isolate the reading mechanism from transformers vibrations.

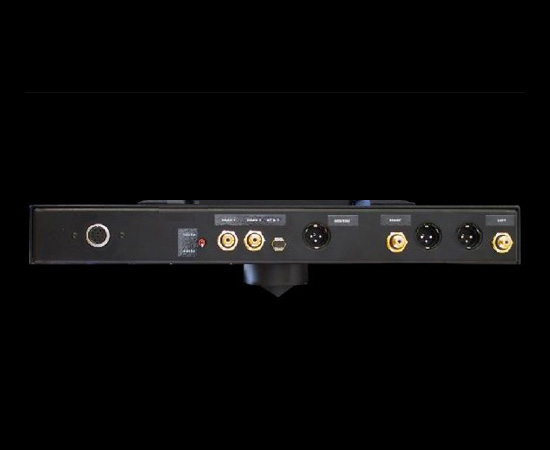

The digital outputs incorporate S/PDIF, AES/EBU symmetrical and ATT high quality optical. Analog stage with both symmetrical XLR and RCA outputs.
[제품 사양]
Pickup Mechanism : Philips CDM12 PRO II with custom modifications
Standard Digital Outputs :
1 S/PDIF (RCA)
1 ATT/ST glass fiber optic
1 AES/EBU-XLR
Optional on Digital Outputs : Additional switchable up-sampler (44.1 to 96khz)
DAC Resolution : 24 bit/192 khz converter with digital up-sampler
120dB of signal to noise ratio at the converter
Analog Stage : Balanced and un-balanced outputs
Power supply: EMI rejection by Schaffner filter.
Four transformers and 4 regulations on the transport and converter
Detachable AC cord with IEC plug

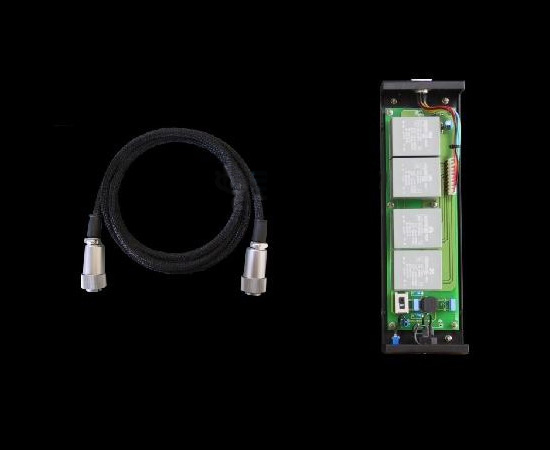

Umbilical 1.5 meter long harness between both unit.
Power consumption : 30 VA
Front Panel : One inch thick Silver or Black Aluminum with Dark Blue illuminated panel
Dimensions (W x H x D) : 450 x 70 x 375 for the main unit
95 x 65 x 230 for the power supply
