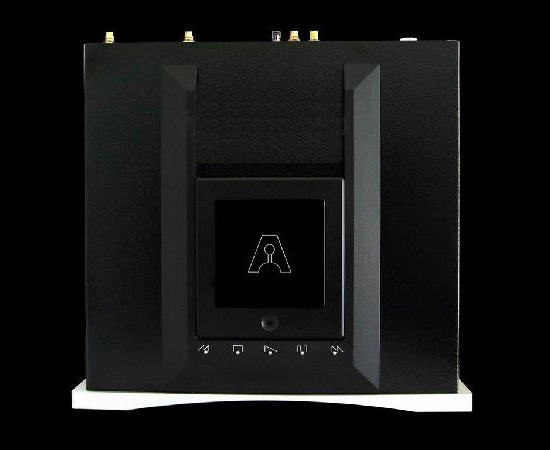

Top loaded integrated CD player and Transport based on the Philips CDM12 PRO II drive for the laser, servo and control functions, and a “Continious Ground” link from the disc surface to the electrical earth by using a new clamp designed by Metronome Technologie.
Proprietary modifications are made to the Philips mechanism to suit the Metronome specifications.

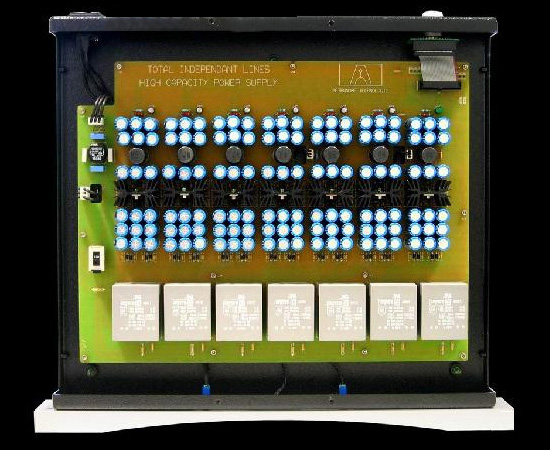

Two box design : one dedicated to the reading mechanism, control electronic and digital outputs, the box contain a separate power supply with 7 transformers.
This power supply configuration provide an heavy protection from EMI/RFI radiation from the
different stages and isolate the reading mechanism from transformers vibrations.

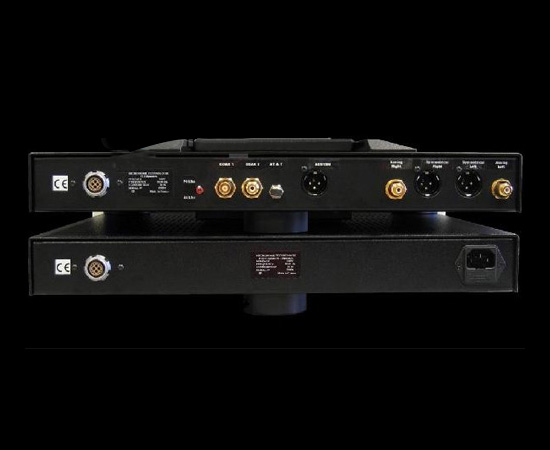

The digital outputs incorporate S/PDIF, AES/EBU symmetrical and ATT high quality optical.
[제품 사양]
Pickup Mechanism : Philips CDM12.PRO-II with custom modifications
Power supply: EMI rejection by Schaffner filter.
Seven transformers and 7 regulations on the transport, one for each critical part of the transport: display, servo mechanism, micro-processor, digital output stage.
Detachable AC cord with IEC plug
Fischer High Quality Umbilical 1.2 meter long harness
between both unit.
Power consumption: 55 VA
Standard Digital Outputs: Switchable Digital up-sampler (44.1 and 96khz)
1 S/PDIF (RCA)
1 ATT/ST glass fiber optic
1 AES/EBU-XLR
DAC Resolution : 24 bit/192 Khz converter with digital up-sampler
120 dB of of signal to noise ratio at the converter
Analog Stage : Balanced and un-balanced outputs.
Front Panel : One inch thick Silver or Black Aluminum with Dark Blue
illuminated panel
Dimensions (W x H x D) 450 x 70 x 390 for each unit
