Nht Controller(AV프로세서)+ Nht Power5 Amplifier(5CH파워앰프) 매장전시품!!!
작성자: 킹사운드
02-3424-4425 02-3424-4426 master＠kingsound.co.kr
2014-07-16
조회 3350
IP 59.6.*.*

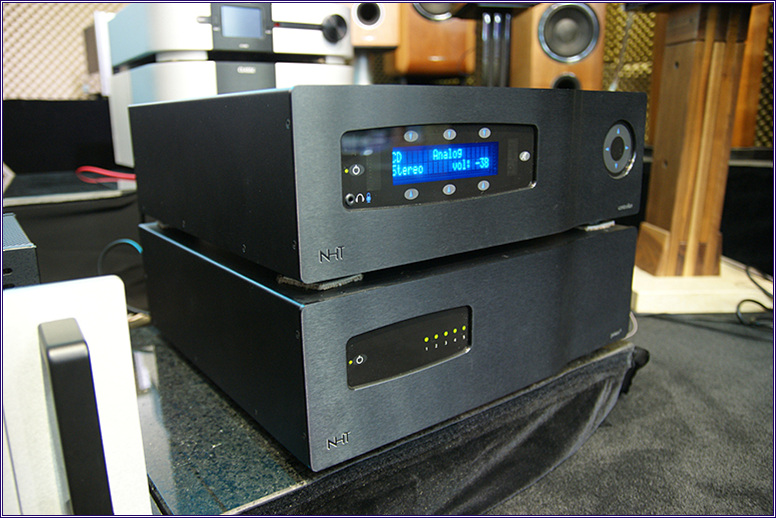

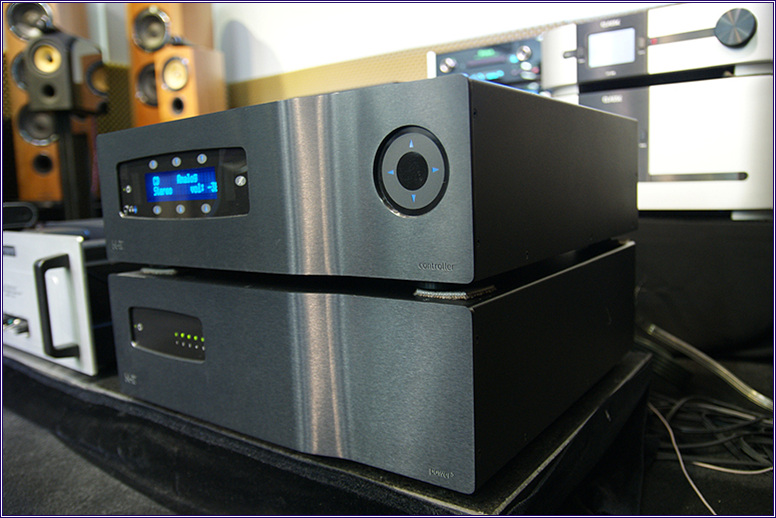

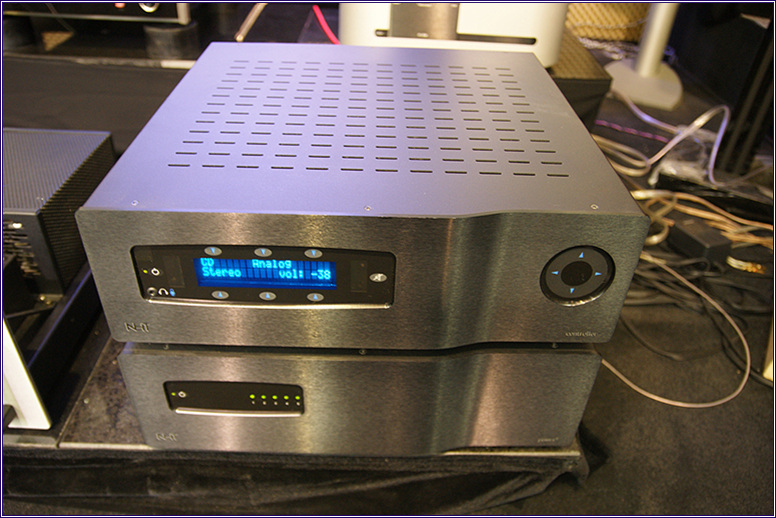

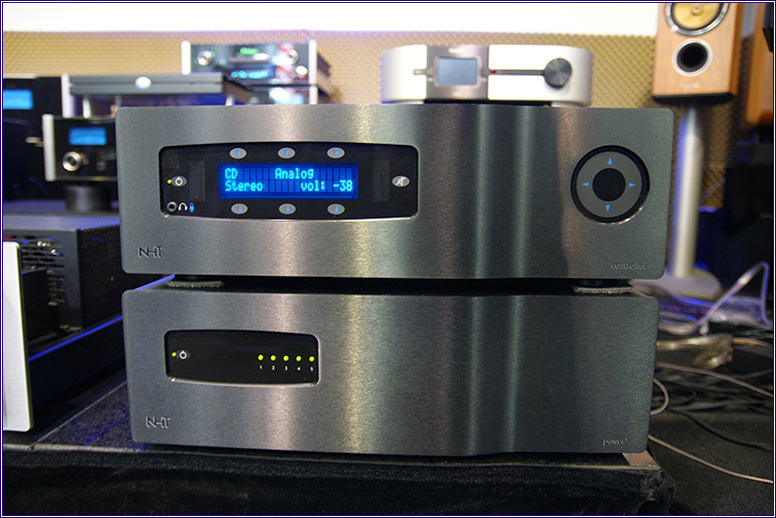

Nht Controller(AV프로세서)+ Nht Power5 Amplifier(5CH파워앰프) 매장전시품!!!
NHT AV프로세서+5CH파워 앰프입니다.상태아주 깨끗한 신동품 입니다.
감사합니다.
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
NHT CONTROLLER(AV 프로세서)
Specifications
| Main Features | Multi-format decoding: Dolby Digital, DTS, DTS-ES, DTS 96/24, AAC Multiple post processing options: Dolby Pro Logic II/ II x (Music, Movie, Games), Dolby EX, DTS Neo:6, Music modes (Surround 6.1, Natural and Party) _ Composite and S-Video input video up-conversion up to component video and HDMI Setup OSD on all video outputs (no overlay) HDMI 1.1 audio support for receiving Dolby Digital, DTS and 2 channel PCM via HDMI interface. FM/AM RDS Tuner NHT Speaker Setup Wizard with NHT speaker DSP processing and Auto level and Distance Calibration (microphone included). Manual speaker setup with small, medium and larger selection with 5 Hz subwoofer crossover steps Proximity activation and Touch sensitive controls Setup lock Ethernet based NHTBus on RJ45 for trigger and intelligent amplifier control Front panel connectors - Headphone/microphone combo Control I/O - 2 IR inputs, Auto calibration microphone input (front panel), Bi-directional RS 232, 3 programmable 12V trigger outputs, NHT control bus on RJ-45 Remote - Dedicated, simple, non-programmable operation, 4 one-touch direct modes: Direct, Movie, Music and Game, 4 direct source selects, Second zone control. Audio Inputs - 6 Analog inputs, 6 Digital inputs (3 coaxial, 3 toslink), 3 Digital HDMI, 7.1 analog input with 3 choices of analog bass management, Audio Outputs - 7.1 analog output, Second Zone output (analog stereo), Second Zone record output, Audio Record output, Digital Toslink output Video Inputs - 6 Composite video inputs, 4 S-Video inputs, 3 Component Video inputs, 3 HDMI inputs Video Outputs - 3 composite outputs, 2 S-Video outputs, 1 component video output, 1 HDMI output |
| Weight | 21lbs |
| Dimensions | 5.75"H x 17.25"W x 17"D |
NHT 5CH 파워앰프
Specifications
| Power Output | 5 x 200W RMS ＠ 8ohms THD+N <0.05% - all channels driven simultaneously |
| Frequency Response | +/-0.5dB 20-20kHz |
| Dynamic range | 112dB A-weighted ＠ full power |
| Damping factor | 2000 ＠ 8ohms 100Hz |
| Peak current | 35A |
| IM distortion | (CCIF) 0.0005% |
| TIM distortion | 0.003% Soft Clipping |
| NHTBus Features | Intelligent operation with NHT Controller. Monitoring of amplifier status Amplifier control – on/standby/mute. Control of individual channel operation – on/off. Utilizes Ethernet infrastructure |
| Protection features | Phase-to-phase short. Phase-to-ground short. Under voltage. Thermal protection. |

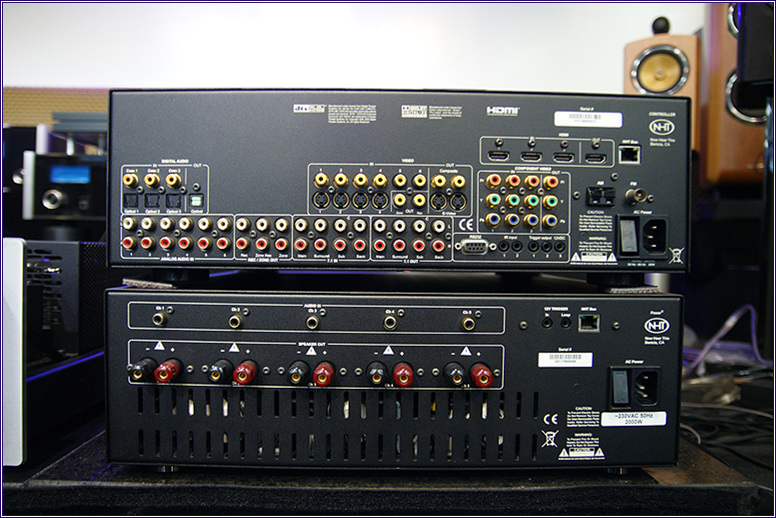

| Rear panel connectors & components |
5 Single-ended RCA input connectors. 5 Pair of binding posts for speaker output – banana spacing. 12V Trigger input/output on 1/8” sub mini jacks. NHTBus connector on RJ45. IEC mains voltage socket |
| Front panel features | 5 Dual-color LED’s for each channel indicating OK/Fault. Standby Touch Sensor. Standby indicator. |
| Weight | 31lbs |
| Dimensions | 5.75"H x 17.25"W x 17"D |
|
