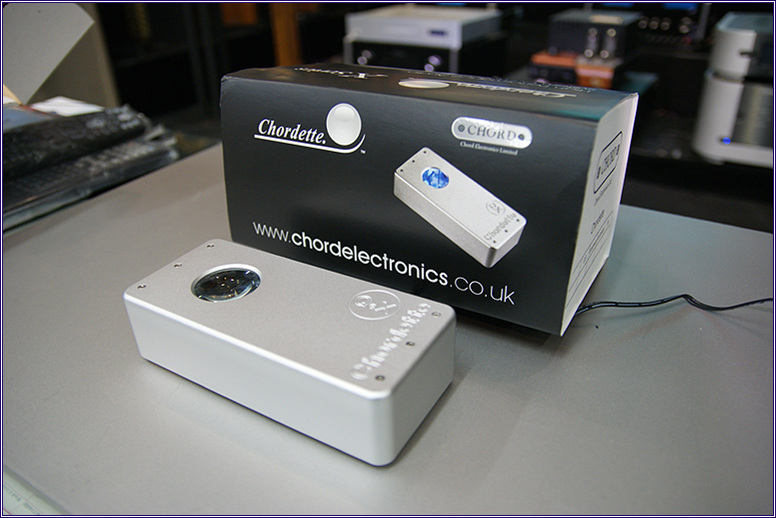

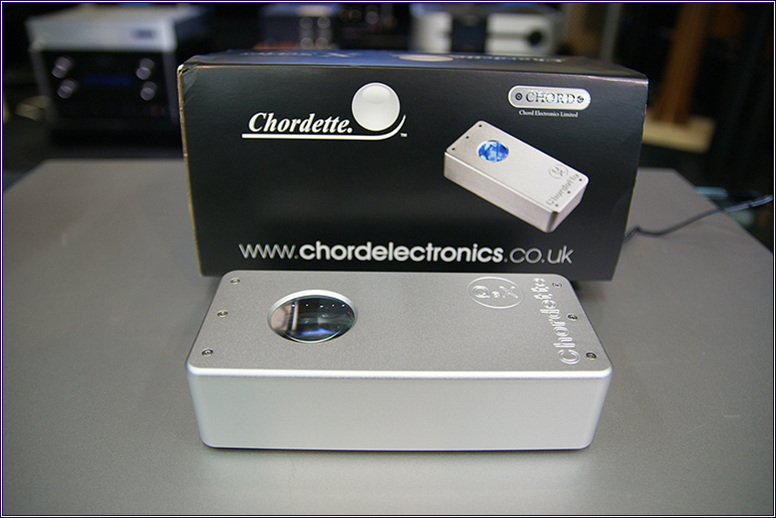

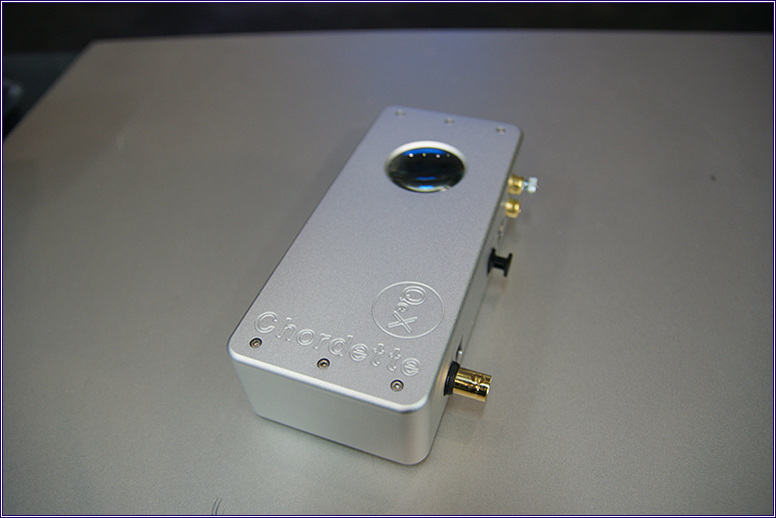

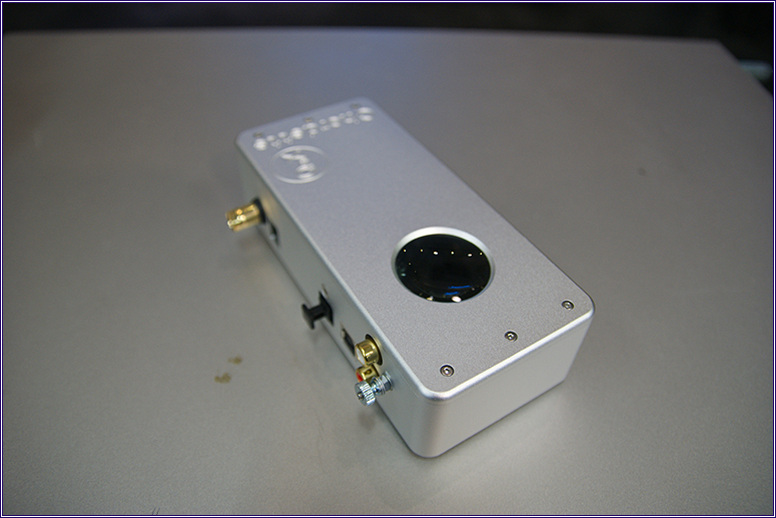

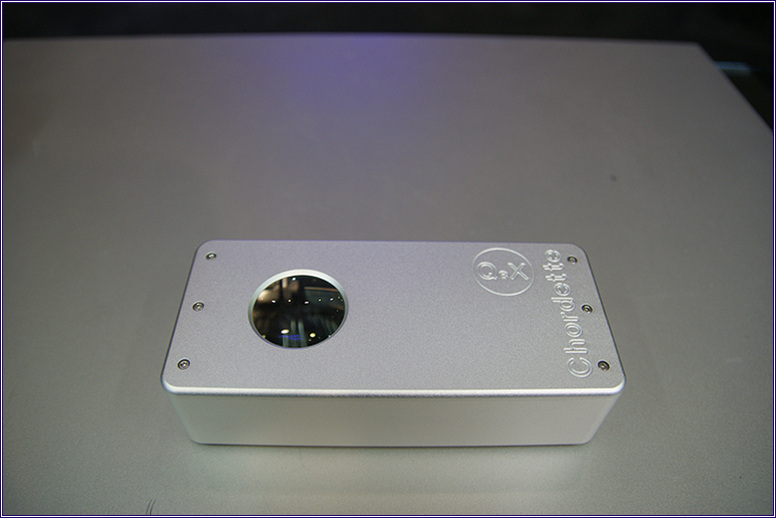

QX DAC 는 유저들에게 환호를 받고있는 코드의 QuteHD 를 기반으로 USB를 통하여 DAD와 192Khz를 재생할수 있습니다.

또한 FBGA (field programmable gate array) 칩은 IX 의 디지털신호를 받을수 있습니다.



• Harmonic distortion: 103 dBV
• Signal-to-noise ratio: 115dBV
• Dynamic range: 118dBV

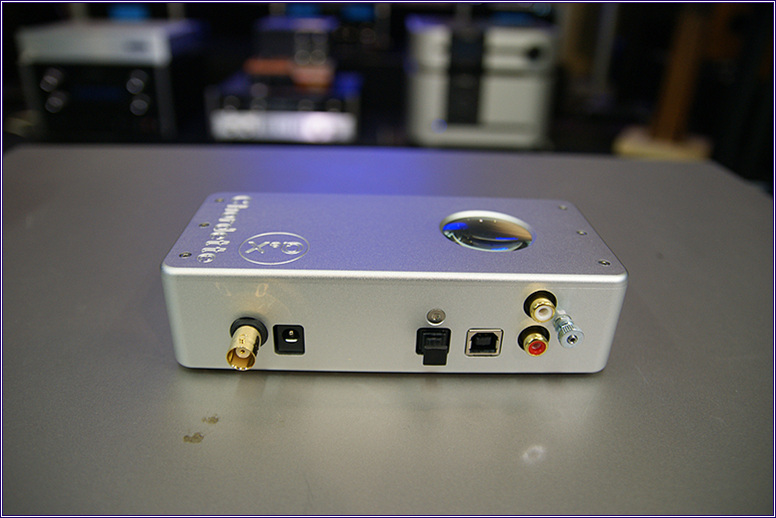

• Digital inputs:
• 1 x USB HD with DSD decoding, 44.1 kHz to 192kHz, 16-32-bit (future 384kHz-ready)
• 1x Optical
• 1x Coaxial 44.1 kHz/ 384kHz-ready, 16-32-bit
• Outputs: 2x RCA phono
• Power supply: 12v 1A 2.1mm connector. Centre point positive 100V- 240V – 50/60Hz, 1A wall adapter supplied
• Weight: 0.4kg
• Dimensions: 160x70x40mm (WxHxD)

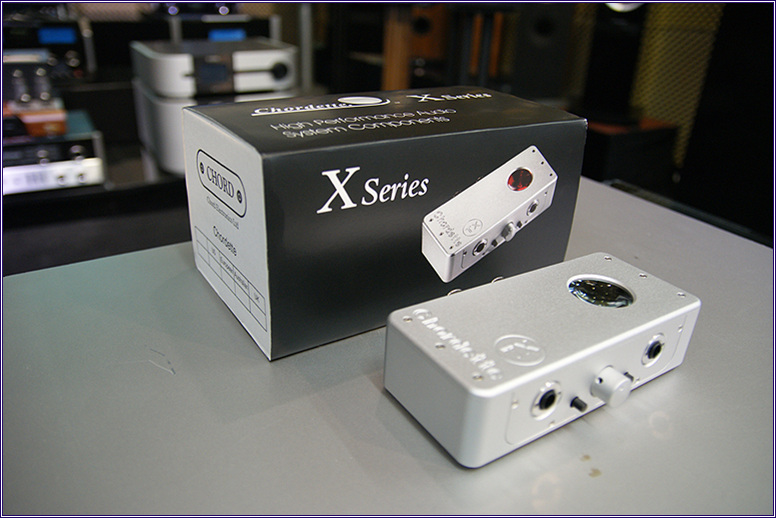

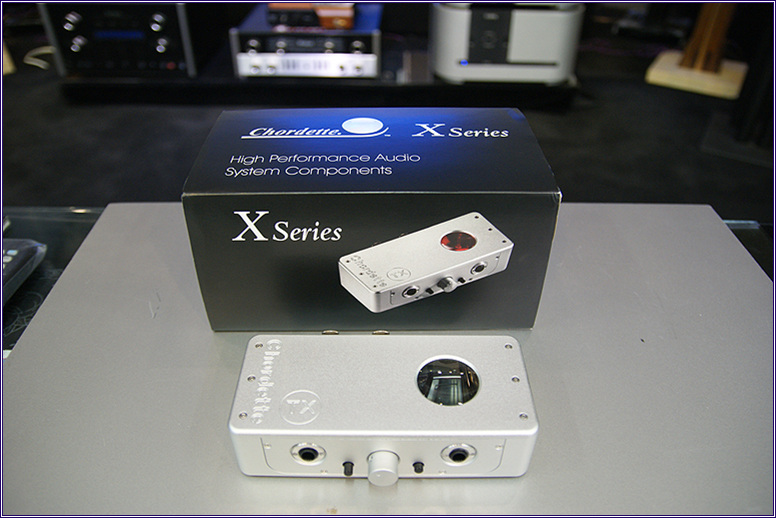

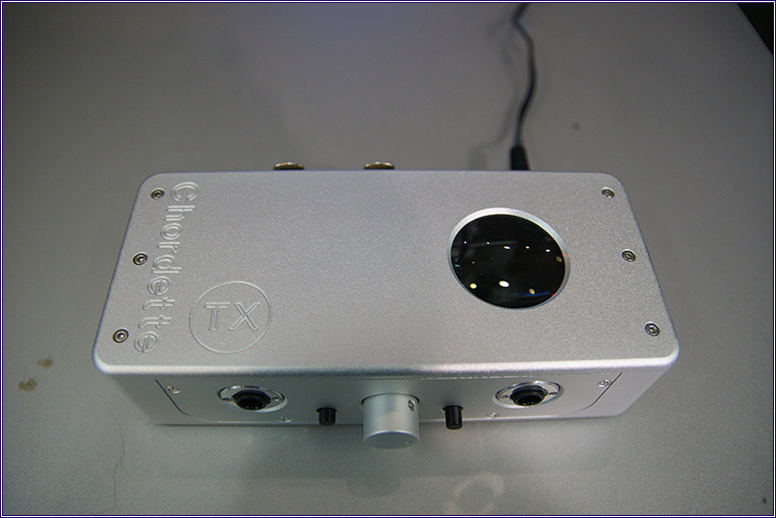

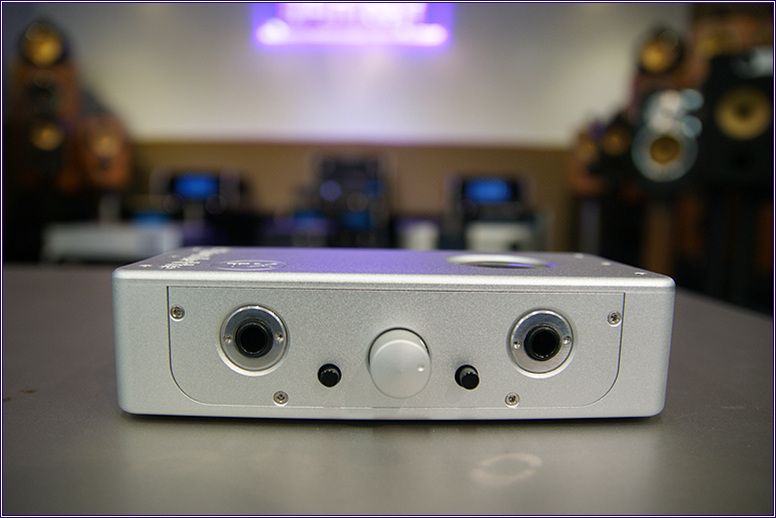

CHORD TX 헤드폰 앰프











MX Series TX headphone amplifier



The TX is an advanced headphone amplifier with both balanced and RCA inputs, plus a high-quality USB input for music replay from computers etc. though the unit’s high-quality DAC. With two outputs, two people can listen simultaneously. Recently awarded a 'Recommended' badge by Hi-Fi Choice magazine, you can read the fuil review below, too.

TX headphone amplifier

• Frequency response: 20Hz–200kHz
• THD+N: 0.06%
• Dynamic range: 112dB
• USB DAC: 0.006% THD; 44.1/48 kHz, USB 2.0 compliant

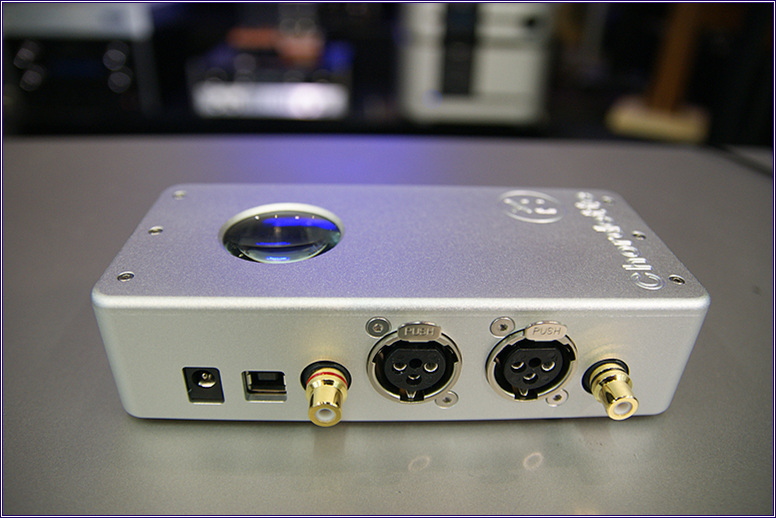

• Switchable inputs: 1xUSB (B-type), 1xRCA phono pair or XLR balanced pair
• Output: 2x¼-inch headphone jack socket
• Power supply: 12V 0.6A 2.1mm connector centre pin positive
• Dimensions: 160x70x40mm (WxHxD)
• Weight: 0.4kg
